Twilio Integration Guide

This guide covers how to integrate Shuttle payments into your Twilio workflows using the <Pay> verb, handle responses, and leverage advanced features through our API.

Using the `<Pay>` Verb

The Twilio <Pay> verb enables DTMF payment collection during phone calls. Here's how to implement it with Shuttle.

Required Parameters

Field	Description
`paymentConnector`	(required) The unique name of your Twilio Pay Connector
`action`	(required) URL for next TwiML instructions after payment
`chargeAmount`	(required for payments) Amount to charge (decimal format)

Optional Parameters

Field	Description	Default
`statusCallback`	URL for progress updates	-
`currency`	ISO currency code (lowercase)	`usd`
`paymentMethod`	Payment type	`credit-card`
`postalCode`	AVS postal code collection	`true` (US/CA only)
`description`	Payment description	-

Shuttle-Specific Parameters

Pass these as <Parameter> elements within the <Pay> verb:

Parameter	Description
`action`	`AUTH` for pre-authorization, `PAYMENT` to capture funds
`save_card`	Tokenize card during payment
`alt_key`	Your payment reference ID
`account_crm_key`	Customer identifier
`account_first_name`	Customer first name
`account_last_name`	Customer last name
`account_email`	Customer email
`account_phone`	Customer phone
`payment_method_code`	Unique payment method ID
`scheduled_date`	Schedule payment for later (YYYY-MM-DDTHH:MI:SS)
`frequency`	`MONTHLY`, `FORTNIGHTLY`, or `WEEKLY` for recurring
`occurrences`	Number of recurring payments
`start_date`	First installment date
`metadata_{key}`	Custom metadata fields

Implementation Examples

Card Tokenization

To save a card for future use without charging:

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step">
</Pay>

Standard Card Payment

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="29.99"
  currency="usd"
  postalCode="false">
  <Parameter name="save_card" value="true"/>
  <Parameter name="alt_key" value="INV-12345"/>
  <Prompt for="payment-processing">
    <Say>Please wait while we process your payment</Say>
  </Prompt>
</Pay>

Pre-Authorization

For auth-only transactions (capture later):

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="99.99">
  <Parameter name="action" value="AUTH"/>
</Pay>

ACH Payment

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="49.99"
  paymentMethod="ach-debit"
  bankAccountType="consumer-checking">
  <Parameter name="AVSName" value="John Smith"/>
  <Prompt for="payment-processing">
    <Say>Processing your bank transfer</Say>
  </Prompt>
</Pay>

Recurring Payment

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="19.99">
  <Parameter name="frequency" value="MONTHLY"/>
  <Parameter name="occurrences" value="12"/>
  <Parameter name="start_date" value="2024-01-01T00:00:00"/>
</Pay>

With Full Traceability

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/payment_complete"
  chargeAmount="149.99"
  description="Premium Plan - Monthly">
  <Parameter name="alt_key" value="SUB-2024-001"/>
  <Parameter name="account_crm_key" value="cus_123456"/>
  <Parameter name="account_first_name" value="Jane"/>
  <Parameter name="account_last_name" value="Doe"/>
  <Parameter name="account_email" value="[email protected]"/>
  <Parameter name="metadata_plan" value="premium"/>
  <Parameter name="metadata_billing_cycle" value="monthly"/>
</Pay>

Handling Payment Responses

The <Pay> verb sends a POST request to your action URL with payment results.

Response Fields

Field	Description
`Result`	Twilio status (check `PayConnector_payment_status` instead)
`PayErrorCode`	Twilio error code if applicable
`PaymentError`	Error message or decline reason
`PaymentConfirmationCode`	Shuttle payment ID
`PaymentToken`	Shuttle payment method ID (for tokenization)
`PayConnector_payment_status`	Primary status field - Always check this
`PayConnector_gateway_status`	Gateway response (APPROVED, DECLINED, etc.)
`PayConnector_gateway_message`	Detailed gateway message
`PayConnector_reference`	Your reference (alt_key)
`PayConnector_gateway_reference`	Gateway transaction ID
`PayConnector_account`	Shuttle account ID
`PayConnector_contract`	Recurring contract ID
`PayConnector_payment_method`	Saved payment method ID
`PayConnector_transaction`	Shuttle transaction ID
`PayConnector_gateway`	Gateway identifier
`PaymentCardNumber`	Masked card number
`PaymentCardType`	Card brand (visa, mastercard, etc.)
`ExpirationDate`	Card expiry (MMYY format)
`SecurityCode`	Masked CVV
`PaymentCardPostalCode`	AVS postal code
`PaymentMethod`	Payment type (ach-debit for ACH)
`BankAccountType`	Account type (consumer-checking, etc.)
`BankRoutingNumber`	Bank routing number
`BankAccountNumber`	Masked account number

Payment Status Values

Status	Action
`SUCCESS`, `UNATTRIBUTED`	Payment successful - provision service
`PENDING`, `UNRESOLVED`	Payment processing - await webhook
`DECLINED`, `REQAUTH`	Payment failed - retry

Decline Types

The PayConnector_gateway_status field provides specific decline reasons:

Type	Customer Action
`DECLINED`	Check details and retry
`DECLINED_CALL_BANK`	Contact bank (e.g., insufficient funds)
`DECLINED_BLOCKED`	Try different card
`DECLINED_ERROR`	Technical issue - contact support
`DECLINED_RETRY`	Temporary issue - retry

Example Response Handling

Success Response (Card Payment)

{
  "Result": "success",
  "PaymentError": "",
  "PaymentConfirmationCode": "pay_31660_10007",
  "PaymentToken": "",
  "PayConnector_account": "acc_20648_10002",
  "PayConnector_contract": "co_20648_10002",
  "PayConnector_gateway_reference": "pay_56242536421653621",
  "PayConnector_gateway_status": "APPROVED",
  "PayConnector_payment_method": "pm_20648_10002",
  "PayConnector_payment_status": "SUCCESS",
  "PayConnector_reference": "REF-00010002",
  "PayConnector_transaction": "tr_20648_10002",
  "PaymentCardNumber": "xxxxxxxxxxxx4242",
  "PaymentCardType": "visa",
  "ExpirationDate": "1223",
  "SecurityCode": "xxx",
  "PaymentCardPostalCode": ""
}

Success Response (ACH Payment)

{
  "Result": "success",
  "PaymentError": "",
  "PaymentConfirmationCode": "pay_31660_10007",
  "PaymentToken": "",
  "PayConnector_account": "acc_20648_10002",
  "PayConnector_contract": "co_20648_10002",
  "PayConnector_gateway_reference": "pay_56242536421653621",
  "PayConnector_gateway_status": "APPROVED",
  "PayConnector_payment_method": "pm_20648_10002",
  "PayConnector_payment_status": "SUCCESS",
  "PayConnector_reference": "REF-00010002",
  "PayConnector_transaction": "tr_20648_10002",
  "PaymentMethod": "ach-debit",
  "BankAccountType": "consumer-checking",
  "BankRoutingNumber": "110000000",
  "BankAccountNumber": "xxxxxxxxxx89"
}

Decline Response

{
  "Result": "payment-connector-error",
  "PayErrorCode": "64008",
  "PaymentError": "Payment Gateway rejected charge creation.",
  "PaymentConfirmationCode": "",
  "PaymentToken": "",
  "PayConnector_account": "acc_20648_10004",
  "PayConnector_contract": "co_20648_10004",
  "PayConnector_gateway": "gw_31660_10002",
  "PayConnector_gateway_status": "DECLINED",
  "PayConnector_gateway_message": "Invalid CVC",
  "PayConnector_payment_method": "pm_20648_10004",
  "PayConnector_payment_status": "DECLINED",
  "PayConnector_reference": "BOLT-00010004",
  "PayConnector_transaction": "tr_20648_10004",
  "PaymentCardNumber": "xxxxxxxxxxxx4242",
  "PaymentCardType": "visa",
  "ExpirationDate": "1223",
  "SecurityCode": "xxx",
  "PaymentCardPostalCode": ""
}

Error Response

{
  "Result": "too-many-failed-attempts",
  "PaymentError": "",
  "PaymentCardNumber": "",
  "PaymentCardPostalCode": "",
  "PaymentCardType": "",
  "PaymentConfirmationCode": "",
  "PaymentToken": ""
}

Error Response - Invalid Credentials

Warning: Twilio returns invalid credentials as "success" with no corresponding data. Always check PayConnector_payment_status:

{
  "Result": "success",
  "PaymentError": "",
  "PaymentConfirmationCode": "",
  "PaymentToken": "",
  "PaymentCardNumber": "xxxxxxxxxxxx4242",
  "PaymentCardType": "visa",
  "ExpirationDate": "1223",
  "SecurityCode": "xxx",
  "PaymentCardPostalCode": ""
}

Important: Always check PayConnector_payment_status as Twilio may return Result: "success" even for failed payments.

Webhooks

Configure webhooks to ensure reliable payment tracking, especially for:

Disconnected calls during payment
Gateway timeouts
Held transactions requiring review
Scheduled/recurring payment updates

Key Webhook Events

Event	Description
`PAYMENT.SUCCESS`	Payment completed successfully
`PAYMENT.DECLINE`	Payment declined (important for recurring)
`CAPTURE.SUCCESS`	Capture completed (for async gateways)
`CAPTURE.DECLINE`	Capture failed
`REFUND.SUCCESS`	Refund processed

Configure webhooks in your Shuttle instance settings. Each webhook contains reference IDs - use the API to retrieve full details.

API Integration

Access advanced features through the Shuttle API.

Authentication

URL: https://api.shuttleglobal.com/c/api/instances/{instance_key}
Header: Authorization: Basic {your_api_key}

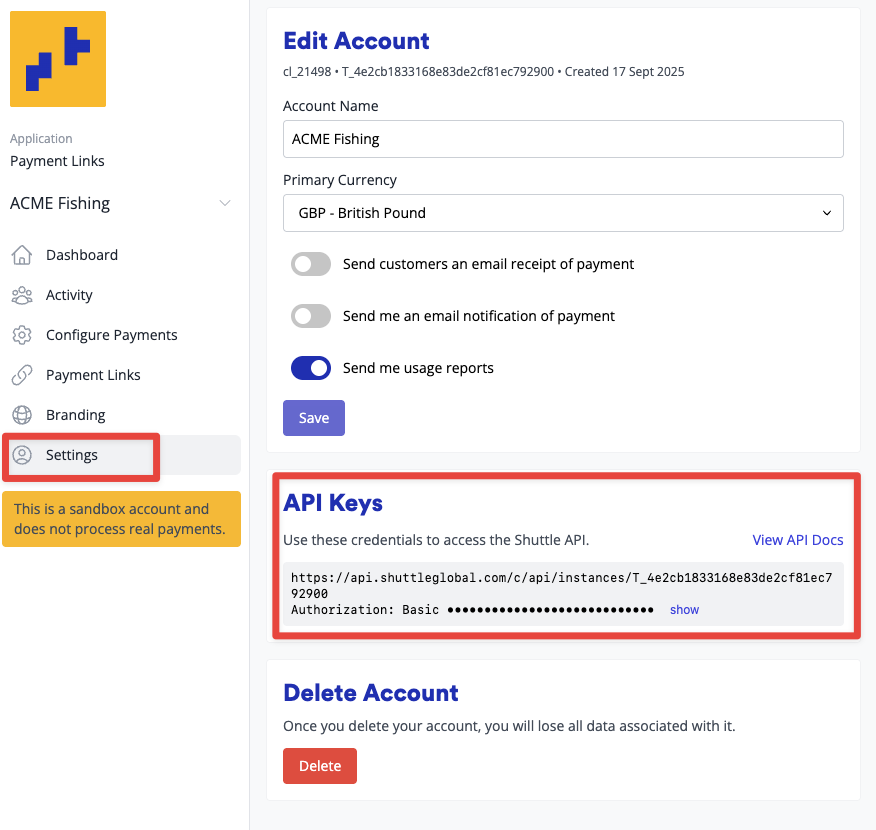

Find your authentication details in the merchant portal under your application => Settings.

Common Operations

Retrieve Payment Details

GET /payments/{payment_id}

Process Refund

POST /payments/{payment_id}/refund
{
  "amount": "19.99"
}

Capture Pre-Authorization

POST /payments/{payment_id}/capture
{
  "amount": "99.99"
}

Void Authorization

POST /payments/{payment_id}/void

Charge Saved Payment Method

POST /payments
{
  "payment_method_id": "pm_20648_10002",
  "amount": "49.99",
  "currency": "USD"
}

Manage Recurring Payments

# Update schedule
PUT /contracts/{contract_id}
{
  "amount": "29.99"
}

# Cancel recurring
POST /contracts/{contract_id}/cancel

Create Payment Link

POST /checkouts
{
  "amount": "99.99",
  "currency": "USD",
  "description": "Invoice #12345"
}

Best Practices

Always use alt_key - Pass your internal reference for easy reconciliation
Include customer data - Use account_* parameters for better tracking
Handle all statuses - Don't assume success; check PayConnector_payment_status
Configure webhooks - Essential for reliable payment tracking
Test thoroughly - Use our demo app to verify your implementation
Use metadata - Pass business context through metadata_* parameters

Troubleshooting

Common Issues

"Invalid credentials" with Result: success
- Always verify PayConnector_payment_status exists
- Check your instance key and secret key
Postal code errors
- Set postalCode="false" for non-US/CA customers
- Pass known postal codes directly: postalCode="12345"
ACH requirements
- Always include AVSName parameter for ACH payments
- Ensure customer name matches bank account
Slow gateways
- Configure <Prompt for="payment-processing"> messages
- Implement webhook handlers for async results
