Twilio agent assist integration guide

This guide covers agent-assisted payments using Twilio’s Payments Subresource API. For automated IVR payments, see the Twilio IVR integration guide.

Overview

Agent-assisted payments let call centre agents guide customers through payment collection. The agent controls the flow through a custom UI, but never sees or hears the actual card details: Twilio captures them and passes them through the Shuttle Pay connector to Shuttle, which charges them through your payment provider.

Key difference from IVR: Instead of the <Pay> TwiML verb, agent-assisted payments use the Twilio Payments Subresource API to give agents programmatic control over the payment flow.

Prerequisites

Complete the setup steps in the Introduction:

Enable PCI Mode on your Twilio account
Install the Shuttle Pay connector

You’ll also need:

A backend service to proxy calls to the Twilio API (agents shouldn’t have direct access to your Twilio credentials)
A webhook endpoint to receive status callbacks during payment sessions

Twilio Payments API

Agent-assisted payments use the Twilio Payments Subresource API. All endpoints are relative to an active call:

https://api.twilio.com/2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments

The flow is:

Start session - Create a payment session attached to the call
Capture fields - Prompt the customer for each payment field
Complete or cancel - Finalise the transaction or abort

1. Start payment session

Call the Twilio Create Payment API to initialise a payment session.

POST /2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments.json

Twilio parameters:

Parameter	Required	Description
`IdempotencyKey`	Yes	Unique key to prevent duplicate transactions
`StatusCallback`	Yes	URL to receive session updates
`PaymentConnector`	Yes	Your connector name (e.g., `shuttle-pay-connector`)
`ChargeAmount`	No	Amount to charge - omit for tokenisation only
`Currency`	No	ISO 4217 code (default: USD)
`PaymentMethod`	No	`credit-card` or `ach-debit` (default: credit-card). `ach-debit` also requires `bank_account_type` and `AVSName` in `Parameter` (see ACH-specific parameters)
`Description`	No	Transaction description
`Parameter`	No	JSON string for Shuttle-specific parameters

Transaction types:

Type	ChargeAmount	Shuttle `action`	Result
Tokenisation	Omit	-	Card saved, no charge
Payment (capture)	Set amount	`PAYMENT`	Card charged immediately
Payment (auth only)	Set amount	`AUTH`	Funds held, capture later
Payment + save card	Set amount	Include `save_card=true`	Card charged and saved

Shuttle parameters are passed as a JSON string in the Parameter field. See the Shuttle Pay connector reference for the full list. Common ones:

{
  "action": "PAYMENT",
  "save_card": "true",
  "alt_key": "INV-12345",
  "account_email": "customer@example.com"
}

Example request:

curl -X POST "https://api.twilio.com/2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments.json" \
  -u "{AccountSid}:{AuthToken}" \
  -d "IdempotencyKey=unique-key-123" \
  -d "StatusCallback=https://your-server.com/webhooks/payment-status" \
  -d "PaymentConnector=shuttle-pay-connector" \
  -d "ChargeAmount=50.00" \
  -d "Currency=USD" \
  -d 'Parameter={"action":"PAYMENT","alt_key":"INV-12345"}'

The response includes a PaymentSid (e.g., PK123abc...) for subsequent operations.

2. Capture payment fields

Call the Twilio Update Payment API to prompt the customer for each field.

POST /2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments/{PaymentSid}.json

Parameter	Description
`Capture`	Field to capture (see values below)

Capture value	Description
`payment-card-number`	Card number, up to 19 digits
`expiration-date`	4-digit MMYY expiration
`security-code`	3-4 digit CVV/CVC
`postal-code`	Billing postal/ZIP code (optional)

Example - capture card number:

curl -X POST "https://api.twilio.com/2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments/{PaymentSid}.json" \
  -u "{AccountSid}:{AuthToken}" \
  -d "Capture=payment-card-number"

When you trigger a capture:

Twilio plays an audio prompt to the customer
Customer enters digits on their phone keypad
Agent cannot hear the DTMF tones
Twilio sends a webhook to your StatusCallback with the result

The agent can capture fields in any order and re-capture if the customer makes a mistake.

3. Complete or cancel

Once all required fields are captured, finalise the transaction:

Complete:

curl -X POST "https://api.twilio.com/2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments/{PaymentSid}.json" \
  -u "{AccountSid}:{AuthToken}" \
  -d "Status=complete"

Cancel:

curl -X POST "https://api.twilio.com/2010-04-01/Accounts/{AccountSid}/Calls/{CallSid}/Payments/{PaymentSid}.json" \
  -u "{AccountSid}:{AuthToken}" \
  -d "Status=cancel"

Webhooks

Agent Assist involves two separate webhook streams:

Twilio status callbacks

Twilio sends webhooks to your StatusCallback URL throughout the payment session. Use these to update the agent’s UI in real-time.

Parameter	Description
`CallSid`	The call this payment is associated with
`PaymentSid`	The payment session identifier
`Capture`	Which field was just captured (during capture events)
`Result`	`success` or error code

On session completion, Twilio includes Shuttle fields (prefixed with PayConnector_):

Parameter	Description
`PayConnector_payment_status`	Primary status - always check this
`PayConnector_gateway_reference`	Gateway transaction ID
`PayConnector_gateway_token`	Tokenised card (when `save_card=true`)
`PaymentConfirmationCode`	Shuttle payment ID

For the full list of response fields, see the Shuttle Pay connector reference.

Shuttle webhooks

Separately, Shuttle sends webhooks to your configured endpoint for payment events (PAYMENT.SUCCESS, PAYMENT.FAILED and others). These are useful for:

Reconciliation and downstream system updates
Handling async gateway responses
Backup if Twilio callbacks fail

These are the same webhooks used for IVR payments. See the Shuttle Pay connector reference for configuration.

Your widget needs to orchestrate the Twilio API calls and display status to the agent.

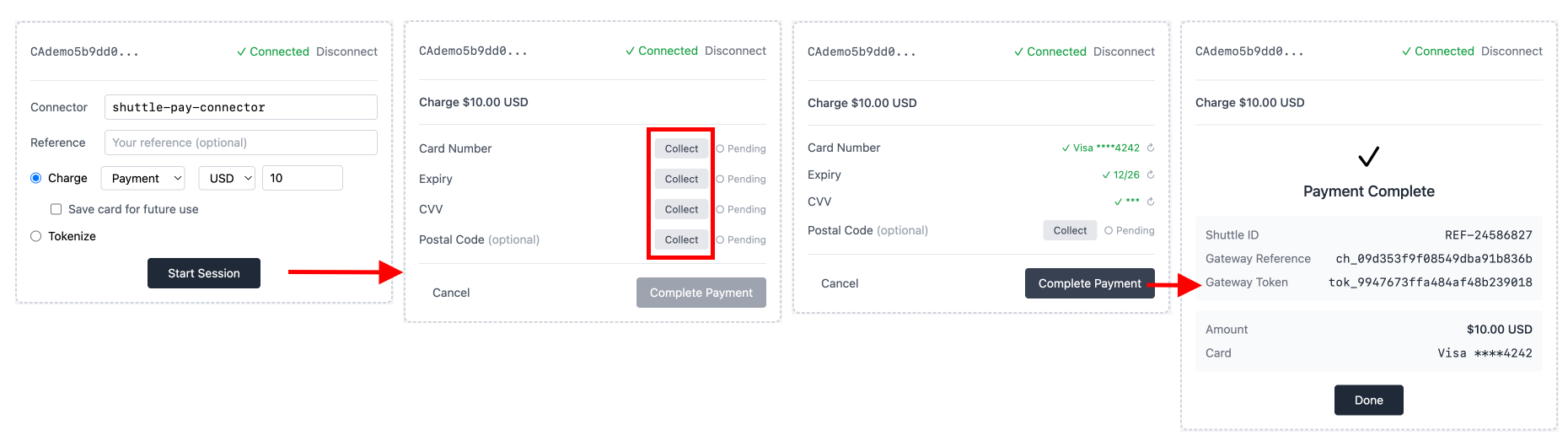

Agent-Assisted Payment Workflow

Getting the CallSid

The CallSid identifies the active Twilio call. How you get it depends on your platform:

Twilio Flex: Available in the task context
Custom softphone: Pass it when the call connects
Third-party CCaaS: Check their docs for accessing call metadata

Payment configuration

Before starting the session, the agent (or your application) configures the transaction. This maps to the parameters in the Start payment session call:

Transaction type: Charge, tokenise, or both
Amount and currency: Required for charges
Reference: Your internal ID (alt_key parameter)

You can pre-fill these from your application context or let the agent enter them manually.

Field capture interface

Provide controls for the agent to trigger each capture and see the results:

Capture buttons - One for each field (card number, expiry, CVV, postal code). When clicked, your backend calls the Twilio Update Payment API with the corresponding Capture value.
Status display - Show the current state of each field:
- Not started
- Capturing (waiting for customer input)
- Captured successfully
- Error (validation failed)
Re-capture - Allow the agent to re-trigger any field if the customer needs to correct their input.

Your backend receives status callbacks from Twilio and pushes updates to the widget via WebSocket or polling.

Completion

Once all required fields show as captured:

Complete button - Calls the Twilio API with Status=complete
Cancel button - Calls the Twilio API with Status=cancel

Results

On completion, display or pass back to your system:

PaymentConfirmationCode - Shuttle payment ID: use it to refund, capture or void the payment through the Shuttle API
PayConnector_gateway_reference - Gateway transaction ID (for reconciliation and support queries with your payment provider)
PayConnector_gateway_token - Saved card token (if applicable)

Error handling

Scenario	Action
Field capture timeout	Agent re-triggers capture
Invalid card number	Agent re-captures the field
Payment declined	Display reason, allow retry or cancel
Network timeout	Retry with same `IdempotencyKey`
Session expired	Start a new session

For decline types and meanings, see the Shuttle Pay connector reference.

Post-payment operations

After a successful payment, use the Shuttle API for refunds, captures, voids and charging saved cards, using the Shuttle payment ID (PaymentConfirmationCode). See the Shuttle Pay connector reference.

References

Twilio Payments Subresource API - Full API reference
Twilio agent-assisted payments blog - Overview and use cases
Twilio Flex plugin quickstart - If building for Twilio Flex
Shuttle Pay connector reference - Parameters, responses, webhooks
