Telnyx IVR integration guide

This guide covers how to integrate Shuttle payments into your Telnyx IVR workflows using the <Pay> TeXML verb for self-service payment collection. Telnyx sends the payment details straight to the Shuttle Pay connector, so you do not need a Twilio account to take payments on Telnyx calls.

Overview

The Telnyx <Pay> verb collects payment details during a phone call. Customers enter their card or bank details using their phone keypad in response to voice prompts, without agent involvement. Telnyx passes the details to Shuttle, which charges or tokenises them through your payment gateway. Your application receives the result, never the card details.

Telnyx implements the same pay connector contract as Twilio, so the Shuttle Pay connector reference applies, with two differences:

• Currency. Telnyx always sends USD to the connector. Pass the real currency as <Parameter name="currency"> on every charge.
• Results. Telnyx does not pass Shuttle’s response back to your action URL. Read the result from Shuttle with the result lookup.

Prerequisites

• A Telnyx account with a TeXML application handling your calls
• A Shuttle instance key and secret key
• A payment gateway connected to your Shuttle instance
• An HTTPS endpoint you control that can return TeXML

Step 1: Create the connector

1. Log into the Telnyx Portal

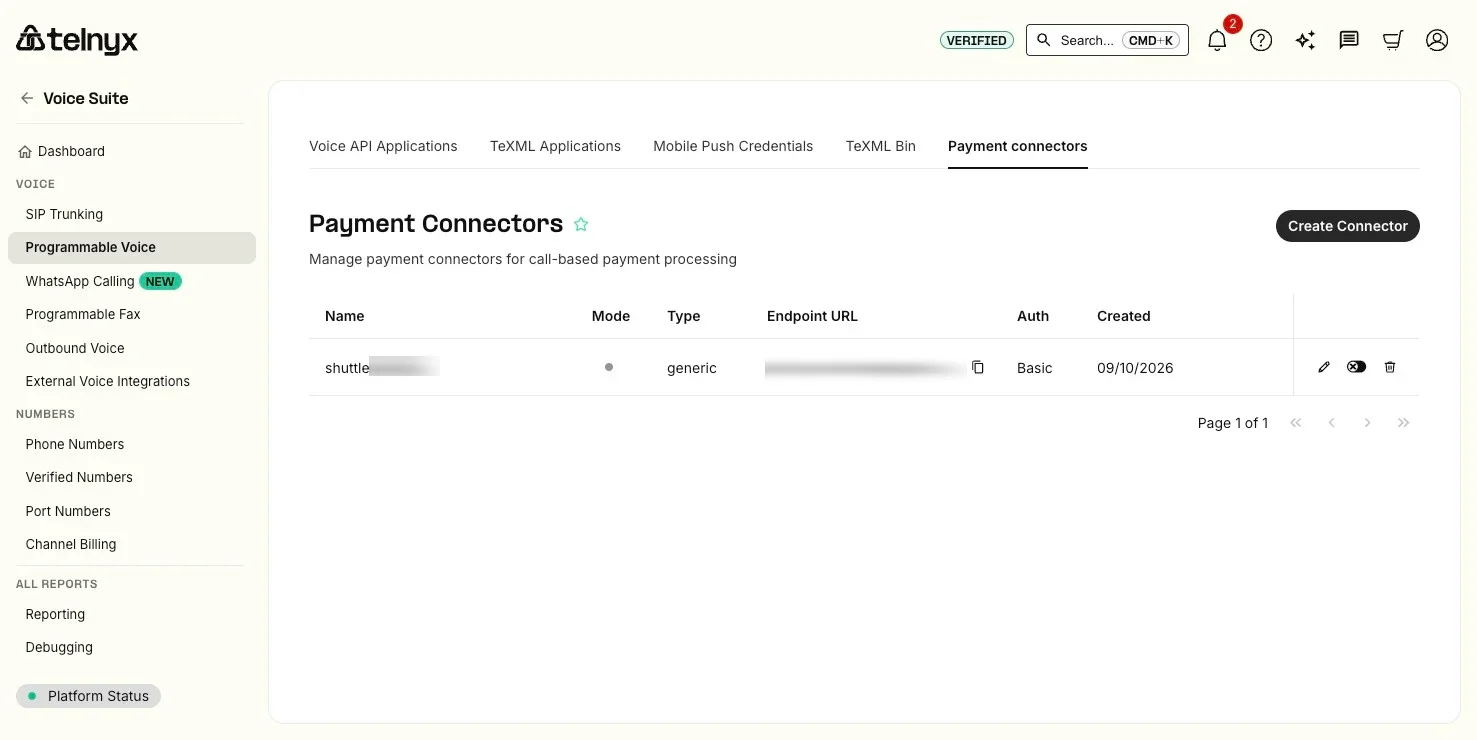

2. In the Voice Suite, go to Programmable Voice > Payment connectors
3. Select Create Connector

4. Enter these settings:

Field	Value
Connector name	shuttle-pay-connector (or similar - note this for later use)
Mode	test until you are ready to take real payments
Endpoint URL	https://app.shuttleglobal.com/c/api/telnyxpay
Authentication type	basic
Username	Your Shuttle instance key
Password	Your Shuttle secret key

The Endpoint URL is Shuttle, not your application. Telnyx sends the collected details there and expects Shuttle’s reply. If it points at your TeXML endpoint, or the username and password are not your instance key and secret key, every payment fails with payment-connector-error and no PayErrorCode.

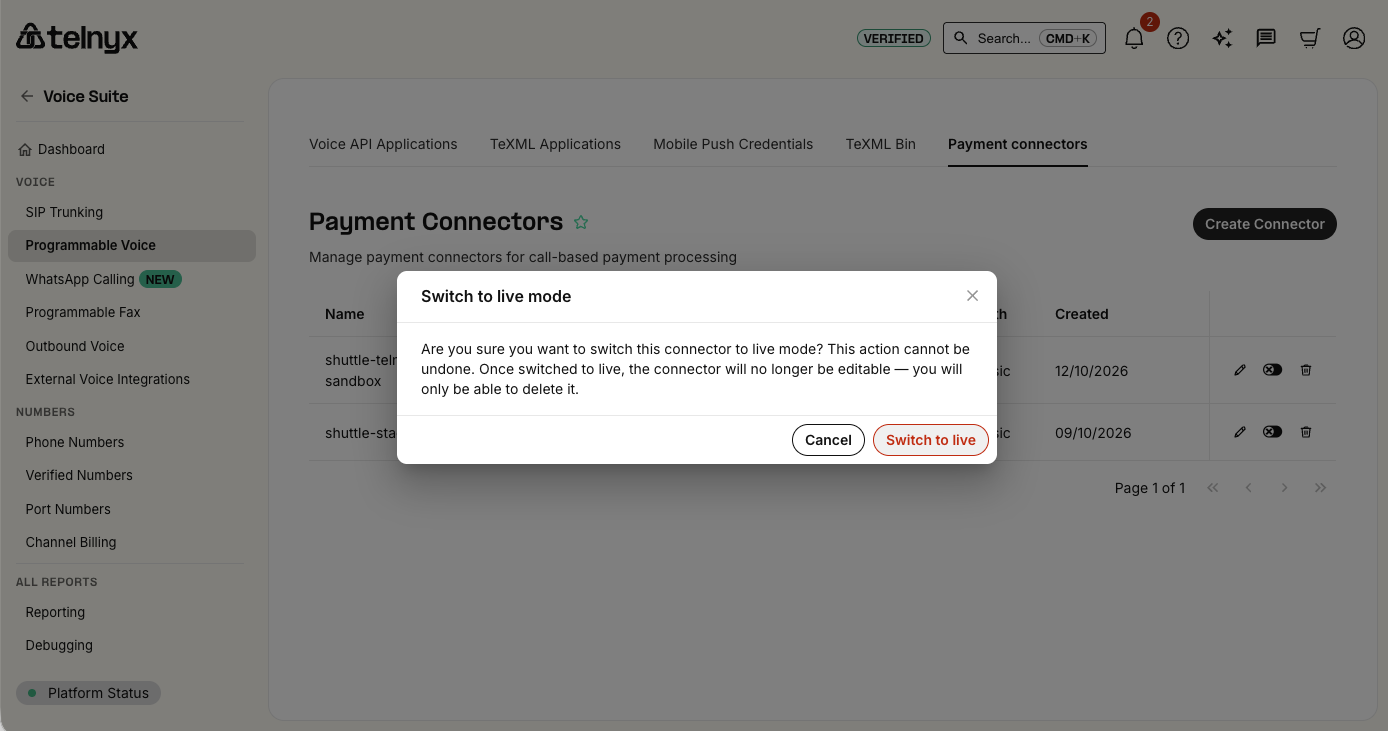

When you are ready to take real payments, switch the connector to live from the toggle in the connector list.

A live connector cannot be edited, and cannot be switched back to test. To change its endpoint or credentials, delete it and create it again. Test connectors can be edited.

You can also manage connectors through the Telnyx API.

Telnyx <Pay> verb

The <Pay> verb is added to your TeXML to collect payment details. See the Telnyx Pay documentation for the full reference.

Telnyx parameters:

Parameter	Required	Description
paymentConnector	Yes	Your connector name (e.g., shuttle-pay-connector)
action	Yes	URL for next TeXML instructions after payment
method	No	POST or GET for the action request (default: POST)
chargeAmount	No	Amount to charge, in major units - omit for tokenisation only
transactionType	No	charge or tokenize (default: inferred from chargeAmount)
paymentMethod	No	credit-card or ach-debit (default: credit-card)
postalCode	No	Collect a postal code for AVS (default: true)
timeout	No	Seconds allowed for each entry (default: 5) - we recommend 30
maxAttempts	No	Attempts allowed for each entry, 1-3 (default: 1) - we recommend 3
statusCallback	No	URL for progress updates
description	No	Transaction description

Set timeout="30" and maxAttempts="3". Telnyx’s defaults give the caller five seconds and one attempt per entry, which is too short to key a card number by hand.

Telnyx’s own currency attribute only accepts USD, so Shuttle ignores it. Use the currency parameter below instead.

Transaction types:

Type	chargeAmount	Shuttle action	Result
Tokenisation	Omit	-	Card saved, no charge
Payment (capture)	Set amount	PAYMENT	Card charged immediately
Payment (auth only)	Set amount	AUTH	Funds held, capture later
Payment + save card	Set amount	Include save_card=true	Card charged and saved

Shuttle parameters are passed as <Parameter> elements within the <Pay> verb. See the Shuttle Pay connector reference for the full list. These are the ones to get right on Telnyx:

Parameter	Rule on Telnyx
currency	Required on every charge. The ISO currency code, e.g. USD or GBP
bank_account_type	Required for ACH: checking, savings or businessChecking
AVSName	Required for ACH: the account holder’s name
alt_key	Recommended on every <Pay>: your own reference, unique per attempt, used to look up the result

ACH works as on Twilio: always pass bank_account_type and AVSName, because neither carrier collects them. Use parameter names exactly as shown: most are case-sensitive. The only exceptions on Telnyx are AVSName, currency and bank_account_type, which are matched whatever their case.

A charge without currency, or an ACH payment without its account type or holder name, is rejected with INVALID_REQUEST before it reaches your gateway.

Examples

Card tokenisation

Save a card for future use without charging:

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  timeout="30"
  maxAttempts="3">
  <Parameter name="alt_key" value="SAVE-12345-1"/>
</Pay>

Standard card payment

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="29.99"
  postalCode="false"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Parameter name="save_card" value="true"/>
  <Parameter name="alt_key" value="INV-12345-1"/>
</Pay>

Pre-authorisation

Hold funds for later capture:

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="99.99"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Parameter name="action" value="AUTH"/>
  <Parameter name="alt_key" value="AUTH-12345-1"/>
</Pay>

ACH payment

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="49.99"
  paymentMethod="ach-debit"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Parameter name="bank_account_type" value="checking"/>
  <Parameter name="AVSName" value="John Smith"/>
  <Parameter name="alt_key" value="INV-12346-1"/>
</Pay>

See ACH-specific parameters for the other bank details you can pass.

Recurring payment

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="19.99"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Parameter name="frequency" value="MONTHLY"/>
  <Parameter name="occurrences" value="12"/>
  <Parameter name="start_date" value="2027-01-01T00:00:00"/>
  <Parameter name="alt_key" value="SUB-12345-1"/>
</Pay>

With full traceability

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/payment_complete"
  chargeAmount="149.99"
  description="Premium Plan - Monthly"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Parameter name="alt_key" value="SUB-2024-001"/>
  <Parameter name="account_crm_key" value="cus_123456"/>
  <Parameter name="account_first_name" value="Jane"/>
  <Parameter name="account_last_name" value="Doe"/>
  <Parameter name="account_email" value="jane.doe@example.com"/>
  <Parameter name="metadata_plan" value="premium"/>
  <Parameter name="metadata_billing_cycle" value="monthly"/>
</Pay>

With billing address (AVS)

Pass the cardholder’s billing address with billing_* parameters if your payment gateway performs address verification. The account_* parameters carry customer identity only - they do not include an address. See the Shuttle Pay connector reference for the full field list.

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/payment_complete"
  chargeAmount="49.99"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Parameter name="account_first_name" value="Jane"/>
  <Parameter name="account_last_name" value="Doe"/>
  <Parameter name="billing_line1" value="123 Main Street"/>
  <Parameter name="billing_line2" value="Apt 4B"/>
  <Parameter name="billing_line4" value="Springfield"/>
  <Parameter name="billing_line5" value="62704"/>
  <Parameter name="billing_line6" value="IL"/>
  <Parameter name="billing_country" value="US"/>
</Pay>

Customising voice prompts

Customise the messages spoken to callers using the <Prompt> element, with the text in a nested <Say>. The for attribute names the step: payment-card-number, expiration-date, postal-code, security-code, bank-routing-number or bank-account-number. See the Telnyx Pay documentation for prompts that vary by attempt, error or card type.

<Pay
  paymentConnector="shuttle-pay-connector"
  action="https://yourapp.com/next_step"
  chargeAmount="29.99"
  timeout="30"
  maxAttempts="3">
  <Parameter name="currency" value="USD"/>
  <Prompt for="payment-card-number">
    <Say>Please enter your card number using your phone keypad</Say>
  </Prompt>
  <Prompt for="expiration-date">
    <Say>Now enter the expiration date</Say>
  </Prompt>
  <Prompt for="security-code">
    <Say>Finally, enter the three digit security code</Say>
  </Prompt>
</Pay>

Handling responses

Telnyx sends a request to your action URL when <Pay> completes. It reports Telnyx’s own outcome, but it does not pass Shuttle’s response through: there are no PayConnector_ fields, and on a decline Telnyx drops Shuttle’s payment ID and decline message.

Telnyx fields:

Field	Description
PayResult	success or failed
Result	Detailed outcome, e.g. success, payment-connector-error, validation-error, too-many-failed-attempts, cancelled
TransactionId	Telnyx’s ID for this payment - use it to look up the result
ChargeId / PaymentConfirmationCode	Shuttle payment ID (successful charges only)
TokenId / PaymentToken	Shuttle payment method ID (successful tokenisations only)
PayErrorCode	Shuttle’s error code, when Shuttle declined or rejected the payment
PaymentError	Telnyx’s description of the error - connector_error when Shuttle declined it
PaymentCardNumber	Masked card number
PaymentCardType	Card brand (visa, mastercard, etc.)

Important: Always look up the result before you tell the caller what happened. success only means Shuttle did not return an error: the payment can still be pending or under review.

What the outcome means:

What you receive	Meaning	What to do
PayResult=success	Shuttle accepted the payment	Look up the result and check status
Result=payment-connector-error with a PayErrorCode	Shuttle declined or rejected the payment	Look up the result for the decline reason
Result=payment-connector-error without a PayErrorCode	Shuttle’s answer did not reach Telnyx in time. The payment may have succeeded	Look up the result. If it is not found yet, wait a few seconds and try again. Never treat this as a failure without checking
Any other Result	The caller did not complete entry, so nothing was sent to Shuttle	Offer to try again

Looking up the result

Shuttle keeps its answer to every payment request Telnyx sends it, whether the payment succeeded or failed. Read it with the same instance key and secret key you gave the connector:

Method	Path	Use
GET	/c/api/telnyxpay/{TransactionId}	When your action URL received TransactionId
GET	/c/api/telnyxpay?alt_key={alt_key}	By your own alt_key, e.g. when the action request never arrived

curl https://app.shuttleglobal.com/c/api/telnyxpay/{TransactionId} \
  -u '{instance_key}:{secret_key}'

curl "https://app.shuttleglobal.com/c/api/telnyxpay?alt_key=INV-12345-1" \
  -u '{instance_key}:{secret_key}'

Response fields:

Field	Description
transaction_id	Telnyx’s transaction ID
alt_key	Your alt_key, if you passed one
connector	telnyxpay
request_type	PAYMENT for a charge, TOKENISE for a tokenisation
updated	When Shuttle answered Telnyx
status	Primary status - always check this. See below
error	{ "code", "message" } - the decline or rejection Shuttle returned, including the gateway’s message. null if there was none
payment	The payment (charges only)
contract	The contract behind the payment (charges only)
payment_method	The payment method
charge	The first charge (recurring charges only)
transaction	The first transaction (recurring charges only)

Card and bank account numbers and security codes are removed.

Status values:

status	Meaning
SUCCESS, PENDING, UNRESOLVED, DECLINED, REQAUTH	A charge: the payment status, as in Payment status values
ACTIVE	A tokenisation: the card or account was saved
INACTIVE	A tokenisation: the card or account was not saved - see error
ERROR	Shuttle could not create a payment or payment method, e.g. a missing currency parameter or a gateway error - see error

For a recurring payment that starts on a future date, status is the contract’s status until the first charge is taken.

Example: successful card payment

{
  "transaction_id": "a1b2c3d4-5e6f-7a8b-9c0d-e1f2a3b4c5d6",
  "alt_key": "INV-12345-1",
  "connector": "telnyxpay",
  "request_type": "PAYMENT",
  "updated": "2026-10-12T14:26:53.137Z",
  "status": "SUCCESS",
  "error": null,
  "payment": { "id": "pay_20648_10045", "status": "SUCCESS", "gateway_status": "APPROVED", ... },
  "contract": { "id": "co_20648_10045", "status": "COMPLETED", ... },
  "payment_method": { "id": "pm_20648_10045", "status": "SINGLEUSE", ... }
}

The payment method is SINGLEUSE because the card was not saved. With save_card=true it is ACTIVE.

Example: declined card payment

{
  "transaction_id": "b2c3d4e5-6f7a-8b9c-0d1e-f2a3b4c5d6e7",
  "alt_key": "INV-12345-2",
  "connector": "telnyxpay",
  "request_type": "PAYMENT",
  "updated": "2026-10-12T14:31:08.512Z",
  "status": "DECLINED",
  "error": {
    "code": "DECLINED",
    "message": "Invalid CVC"
  },
  "payment": {
    "id": "pay_20648_10046",
    "status": "DECLINED",
    "gateway_status": "DECLINED",
    "gateway_message": "Invalid CVC",
    ...
  },
  "contract": { "id": "co_20648_10046", ... },
  "payment_method": { "id": "pm_20648_10046", ... }
}

Example: successful tokenisation

{
  "transaction_id": "c3d4e5f6-7a8b-9c0d-1e2f-a3b4c5d6e7f8",
  "alt_key": "SAVE-12345-1",
  "connector": "telnyxpay",
  "request_type": "TOKENISE",
  "updated": "2026-10-12T14:35:41.008Z",
  "status": "ACTIVE",
  "error": null,
  "payment_method": { "id": "pm_20648_10047", "status": "ACTIVE", ... }
}

Errors:

Status	Meaning
404	No result found. Nothing reached Shuttle for that ID, it is more than 24 hours old, or Shuttle is still processing the payment - try again after a few seconds
401	The credentials do not belong to the instance that took the payment
400	Neither a transaction ID nor an alt_key was given

Good to know:

• Results are kept for 24 hours. After that, retrieve the payment or payment method by ID.
• Make alt_key unique per attempt, e.g. ORDER-123-1, then ORDER-123-2 if the caller tries again. If you reuse an alt_key, the lookup returns the most recent attempt only. It finds tokenisations as well as charges.

Shuttle webhooks

Shuttle webhooks are sent from Shuttle to your backend, separately from Telnyx’s callbacks, so you keep a record of every payment even when a call drops part way through. See the Shuttle Pay connector reference for events and configuration.

Post-payment operations

After a successful payment, use the Shuttle API for refunds, captures, voids and charging saved cards. See the Shuttle Pay connector reference.

Testing

New connectors start in test mode. A test connector still sends payments to Shuttle, but Telnyx only accepts its own test card numbers, such as 4111111111111111 (Visa), 5555555555554444 (Mastercard) and 378282246310005 (American Express) - any other card is rejected as invalid-card-number.

Point a test connector at a Shuttle sandbox instance with a Sandbox Gateway, so no real payment is taken. All three cards above are Sandbox Gateway test cards, approved with any expiry date that hasn’t passed and a 3-digit security code (4 digits for American Express).

Telnyx rejects the Sandbox Gateway’s decline cards, so test declines with the security code instead: on the Visa or Mastercard card, a security code from 901 to 906 returns a decline or an unresolved payment, and 900 a pending one. See CVC triggers. The triggers don’t apply to American Express.

For ACH, Telnyx’s test connector accepts any routing and account number of a valid length, but the Sandbox Gateway only accepts its own test ACH accounts, in USD: use routing number 110000000 with account number 000123456789 for an approval. Any other account is declined.

Before you go live, run a card charge, an ACH charge, a tokenisation and a decline end to end, and check the lookup returns each one. If you record calls, also retrieve the recording of a test payment and confirm the caller’s key presses are not in it.

Support

Shuttle supports the Shuttle Pay connector and the payment - declines, gateway responses, tokenisation, webhooks and the Shuttle API. When raising a payment with us, include the TransactionId or your alt_key. For TeXML, <Pay>, the Telnyx Portal, DTMF and call recording, contact Telnyx support.

References

• Telnyx Pay documentation - Full <Pay> verb and connector reference
• Shuttle Pay connector reference - Parameters, statuses, webhooks, API operations
• Twilio IVR integration guide - The same integration on Twilio
• Sandbox Gateway - Test card numbers
